Materials used in the various for construction of parts in contact with liquids:
- Aluminium
- Stainless steel - AISI 316
Materials used for diaphragms:
- Geolast (Buna-N)
- Santoprene (EPDM)
- **Teflon
- Viton

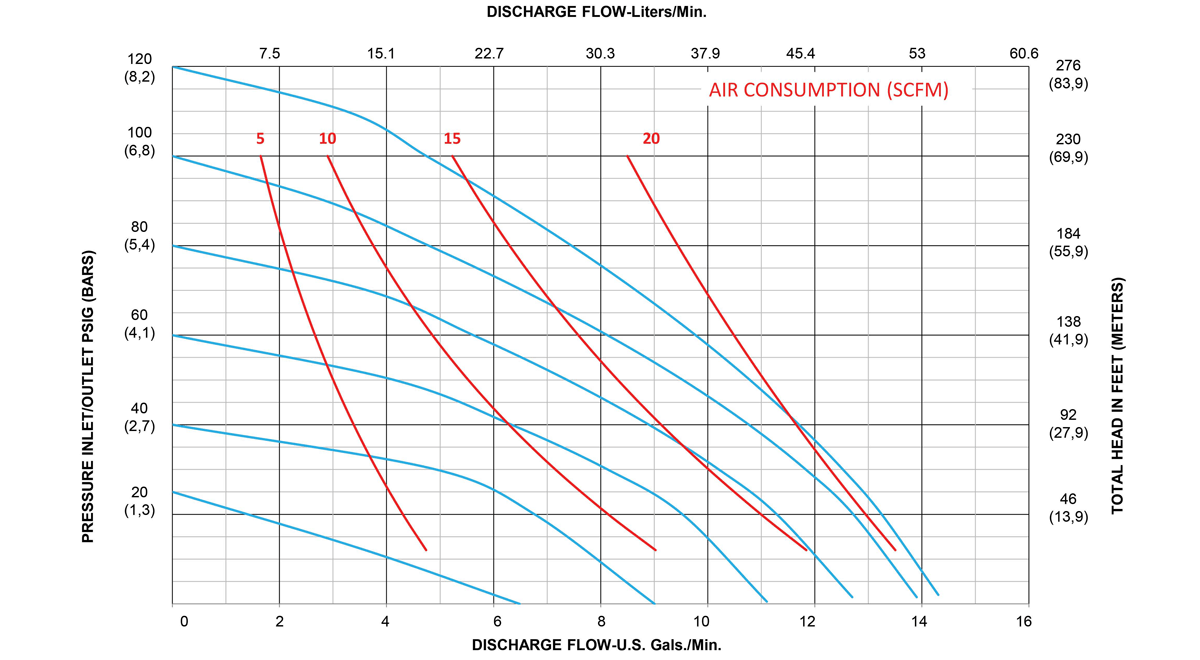

| Flow rate adjustable |
from 0 to 64,6 l/min. (con H2O) |
| Max pressure | from 1,2 to 8,2 bar |
| Weight |
8,6 kg in Stainless 316 - 4,5 kg other |
| Suction |
1/2" G.f. |
| Discharge |
1/2" G.f. |
| Air inlet |
1/4" G.f. |
| Suction lift | ~ 3 mt a dry |
| Maximun size of solids | Ø 3,2 mm con valvola norm. |
| Max temperatur | 93°C Alluminium / Stainless - Aisi 316 |
| Capacity | 0,095 lt |
